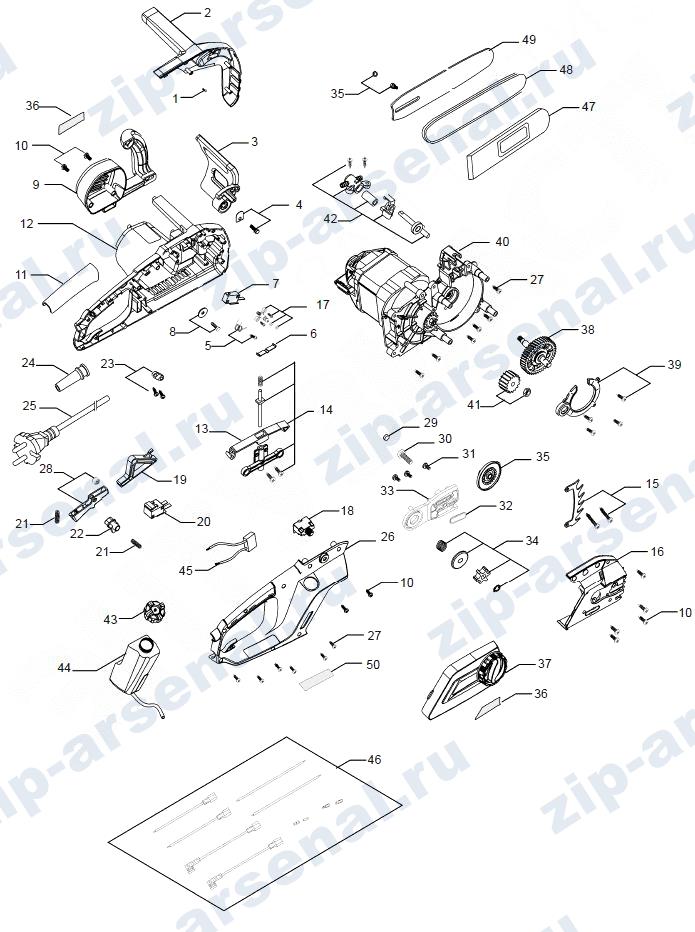

| Номер на схеме |
Наименование | Артикул (код) |
|---|---|---|
| 1 | Винт*4 | 5054688-01 |
| 2 | COVER | 5054689-01 |
| 3 | BRAKE | 5054721-01 |
| 4 | CLAMP | 5055310-01 |
| 5 | SPRING | 5054668-01 |
| 6 | SPRING PLATE | 5054693-01 |
| 7 | MICRO SWITCH | 5054694-01 |
| 8 | Шайба в компл. | 5054669-01 |
| 9 | COVER | 5054695-01 |
| 10 | Винт*9 | 5054670-01 |
| 11 | COVER | 5054696-01 |
| 12 | CLAMSHELL | 5054697-01 |
| 13 | SWITCH | 5054698-01 |
| 14 | SWITCH | 5054671-01 |
| 15 | BUMPER | 5054672-01 |
| 16 | COVER | 5054699-01 |
| 17 | NOZZLE | 5054673-01 |
| 18 | OVERLOAD PROTECTION | 5054700-01 |
| 19 | ARM | 5054701-01 |
| 20 | SWITCH | 5054702-01 |
| 21 | SPRING | 5054674-01 |
| 22 | BUTTON | 5054703-01 |
| 23 | KIT | 5055608-01 |
| 24 | SLEEVE | 5054704-01 |
| 25 | CORD | 5051058-01 |
| 25 | CORD | 5055619-01 |
| 26 | CLAMSHELL | 5054706-01 |
| 27 | SCREW | 5055592-01 |
| 28 | SWITCH | 5054676-01 |
| 29 | RUBBER PLUG | 5054722-01 |
| 30 | SCREW | 5054708-01 |
| 31 | SCREW | 5054709-01 |
| 32 | SEAL | 5055589-01 |
| 33 | PLATE | 5054677-01 |
| 34 | SPRING | 5055590-01 |
| 35 | AdjustmentAssyChain | 5055644-01 |
| 36 | Наклейка | 5102158-01 |
| 37 | COVER | 5054682-01 |
| 38 | SHAFT | 5054715-01 |
| 39 | GEARBOX | 5054683-01 |
| 40 | MOTOR ASSY | 5054717-01 |
| 41 | WORM GEAR | 5054718-01 |
| 42 | PUMP | 5054684-01 |
| 43 | CAP | 5054719-01 |
| 44 | OilTankAssy | 5054685-01 |
| 45 | CAPACITOR | 5055299-01 |
| 46 | CABLE | 5054687-01 |
| 47 | SCABBARD PLAIN | 5300475-13 |
| 48 | Chain16\" | 5310241-28 |
| 49 | Bar16\" | 5310242-37 |
| 50 | """Наклейка """" WARNING"""" """ | 5055337-01 |
